eBook LED video walls
Welcome to this eBook explaining the benefits of Barco LED video walls.
Choosing the right technology
There’s no such thing as ‘the best video wall’. But there is something like ‘the best video wall for your application’. Barco is one of the few manufacturers to offer all dominant video wall technologies, giving our customers the opportunity to choose the solution that best suits their needs.
When should you go for LED?
Direct-view LED has been around for a number of decades already, and – like any display technology– has gone through quite some changes. Recent quality improvement and price erosion has made the technology increasingly more interesting for many purposes. These are the main strongholds of LED.
Visual accuracy
High brightness
Great impact
Long lifetime
Truly seamless canvas
Visual accuracy
High brightness
Great impact
Long lifetime
Why Barco LED?
Convinced that LED is the way to go for your application? Then you need to know why you should go for Barco as a supplier and partner. These are our differentiations across our entire LED portfolio.
Unique image processing
Leading technology player offering best-in-class visualization
Brand reputation
Modular designs and service packs for the ultimate peace of mind
Serviceability
For colors displayed the way they were envisaged, purpose-built for applications
Cookieを受け入れていないようです
このビデオを視聴するにはパフォーマンスCookieを有効にしてください。
Introducing Barco TruePix
The smart move for your LED video wall experience
TruePix is Barco’s new flagship LED platform, based on 2 decades of expertise in LED technology. In order to bring the best possible LED platform to our customers, we have re-evaluated every component and perfected where necessary. The result is a new direct view LED platform, ensuring an unmatched lasting viewing experience, with sustainable ultimate quality and easier than ever to install.
Introducing Barco TruePix
Choosing the right pixel pitch
TruePix is available with pixel pitches of 0.9 mm, 1.2 mm, 1.5 mm and 1.9 mm.
So which one is best suited for your application? The key is to know the viewing distance.
The Optimal Viewing Distance (OVD) of your display is the distance from which you can no longer distinguish the individual pixels but start to see a uniform reproduction of the content. The image at the right explains the optimal viewing distance for the different available pixel pitches.
A general rule of thumb is that the OVD (in m) = 2 x pixel pitch (in mm). Although very handy, this rule of thumb should not be considered an absolute truth. In control room applications, such as SCADA or content with small letters, the OVD can increase. An on-site evaluation is therefore a good idea.
Why TruePix truly is the smart move
Easy to install
Best image quality
Solid performance
Service & reliability
Easy to install
Best image quality
Solid performance
Service & reliability
Easy to install
Why a perfect video wall setup matters
The installation process of an LED video wall is a very precise job. Every minor deviation either results in a bigger inter-screen gap, or strain on the panels. On average, about 30% of the installation time is consumed by adjustments to minimize the seams. Especially when dealing with very fine pixel pitches (the smallest being 0.9 mm), every slight imperfection is clearly visible.
TruePix brings the solution.
Easy to install
Risk-free installation
Guided module placement
- Ensures contactless installation
- Risk-free, easy to perform
- Prevents strain on the panels
- Magnetic automated module extraction for LED swap in <30 seconds
Cookieを受け入れていないようです
このビデオを視聴するにはパフォーマンスCookieを有効にしてください。
Easy to install
Auto-balancing mechanics, for 100% seamless and perfectly flat outcomes
No mounting wall is perfectly straight, and this causes challenges when mounting an LED video wall. This can lead to imperfect alignment, tile gaps or mechanical stress (leading to module failure). To counter this, TruePix’ smart mounting system uses the force of gravity and the principle of communicating vessels to make the wall perfectly straight.
Auto-balancing mechanics
- Always 100% seamless result
- Perfectly flat video wall
- No Z-seams
Cookieを受け入れていないようです
このビデオを視聴するにはパフォーマンスCookieを有効にしてください。
Best image quality
Presenting Infinipix® Gen2
People expect impeccable image quality of LED video walls, under all circumstances. However, this is not a given. It takes an innovative and powerful image processing system to make the content truly come to life. Our proprietary Barco Infinipix® Gen2 processor is the top performer in the market today, presenting a number of unique features – both software and hardware – to bring the most out of your video wall.
Best image quality
Bringing content to life as intended
LED displays are renowned for their high brightness. However, 90% of all installations only use the wall at 1/3th of its maximum capacity. This means that the ability to display perfect images, even when drastically dimmed, is a crucial asset of an LED video wall solution.
True dynamic range
- 23 bit processing on Barco Infinipix® Gen2
- Availability of all grey levels
- Best performance at any brightness level (even when severely dimmed)
Best image quality
SteadyViewTM for optimal viewing comfort
When looking at an LED screen for long periods of time, eye fatigue can be a serious issue. For control room operators, for example, this is a real issue that can lead to loss of concentration and even eye problems. The cause is the perceivable patterns that originate from driving LEDs. Barco’s patented SteadyView technology strongly counters this effect, helping to reduce eye fatigue.
SteadyView
- Unique LED driving algorithm
- Randomizes patterns to reduce eye fatigue
- No image quality loss whatsoever
Best image quality
Video synchronization for large walls
When operating a large video wall, you need multiple controllers driving it. And although they are fed the same source, there can be a slight hiccup in the synchronization between different panels. This is especially visible when an object is moving across the canvas, as becomes clear on the video below.
Video synchronization
- Proprietary system for Infinipix® Gen2 processors
- Keeps synchronization between hardware components perfect in time
- Smooth transitions
These videos show the difference between the traditional system, and a Barco wall.
Best image quality
Smart-Calibration ensures optimal color accuracy
The color gamut of an LED display is limited by the characteristics of the individual LEDs. This affects the video wall’s ability to display colorful images accurately. Therefore Barco developed Smart-Calibration.
Smart-Calibration
- Counters limitations in color gamut of an LED display
- Unlocks the support of wide color gamuts including DCIP3 and even REC2020
- Never seen before accuracy
- Deeper, more saturated hues
- No visual impact on uniformity in areas of the image that would otherwise fall outside of the available color space of the display.
Solid and sustainable performance
Ensuring uptime and limiting environmental footprint
LED panels are well-known for their excellent reliability and are therefore often used in critical 24/7 applications. For TruePix, we have taken all possible measures to optimize the uptime and ensure your continuity of operation. This not only includes a set of features to prevent failure, but also a complete service offering for ultimate peace of mind.
Solid and sustainable performance
Motorized module extraction
LED video walls and wild animals have one thing in common: their biggest threat is man. The display can function for a very long time, but the moment they are touched (by accident, or for maintenance reasons), they are at their most vulnerable.
Motorized module extraction
- Barco proprietary system (we were the first to introduce motorized module extraction)
- Motorized front access by using a magnet
- Modules are extracted automatically, parallel to the wall
- No manual interventions
- Very safe, no risk of damages
Cookieを受け入れていないようです
このビデオを視聴するにはパフォーマンスCookieを有効にしてください。
Solid and sustainable performance
Full front and back serviceability
To make maintenance and service as flexible as possible, TruePix is fully accessible from both the front and the back. This allows service staff to choose the option that best suits the needs. The previous page showed the motorized module extraction from the front. The special tile back design, ensures risk-free swaps.
Solid and sustainable performance
Countering data path interruptions
Although the LEDs themselves are very reliable, you also need to feed the panels with information. This data path is more vulnerable, which can cause malfunction of the video wall.
4- way failover
- Data signal linked to all neighboring LED tiles
- When any link breaks, LED tile picks up signal from a surrounding module
- Simpler system set-up with automatic tile recognition
- Data path is automatically configured
5Gb bandwidth capacity
- 5 times bigger bandwidth than other LED products
- Reduced number of cable runs from controller to the wall
- Less complexity, limited risk of failures
Cookieを受け入れていないようです
このビデオを視聴するにはパフォーマンスCookieを有効にしてください。
Solid and sustainable performance
Friendly for the environment
Next to excellent visual accuracy and extreme reliability, TruePix incorporates features that reduce its ecological footprint.
This includes Eco Power standby mode and a dedicated power consumption-saving sensor.
Service and reliability
Introducing a comprehensive services portfolio
Services for every step in the product’s lifecycle, for maximum efficiency and ROI.
EssentialCare
- Enjoy up to 10 years of dedicated service and support for your system
- Guaranteed full LED batch compatibility
SmartCare
- All benefits from EssentialCare, with additional connected services
- Additional warranty for an extended period
The best viewing experience for any application

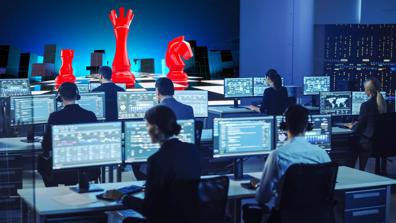

Control rooms
- Uninterrupted operations for effective, fast decision-making
- Reduces operator’s eye-fatigue, improves ergonomics
- Full color control to match the workstation monitor with the overview display
- EcoPower standby to reduce carbon footprint

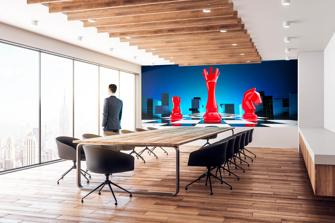

Workplace
- Viewing experience without any distortions
- Accurate and vivid color representation
- Low latency to ensure lipsync during key presentations
- Guaranteed long lifetime ensuring low TCO

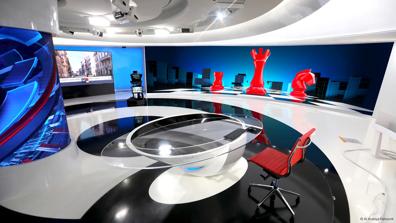

Broadcast
- Full color control to support any creative need and match in-camera colors
- No visual distortions, limited moiré effect
- Easy to manage & monitor equipment
- Uninterrupted on air thanks to TruePix unique failover system
Talk to us
Don't hesitate to contact us with your questions. Our team will gladly point you in the right direction.
