F80‑4K9

9,000 lumens, 4K UHD, DLP laser phosphor projector

Stunning images with Rec. 709 color gamut
Ultimate installation flexibility, 24/7 operation
3D capable

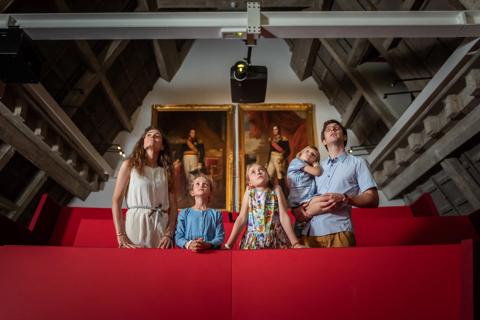

The stunning image quality and laser phosphor light source of Barco's F80 projectors enable you to provide exceptional experiences while saving both time and money. They're designed for fixed installation in a wide range of applications such as museums, board rooms, and auditoriums. Thanks to their 3D capability, they're also perfectly fit for theme park dark rides and interactive experiences.

Superior image quality

The F80-4K9 delivers stunning images at 4K UHD resolution with a high level of detail, and highly saturated colors that meet the Rec. 709 color space. What's more it features the powerful Barco Pulse processing that allows for sharper images and less latency thanks to its Single Step Processing (SSP).

Unprecedented business value

With this projector you can increase your uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

The F80-4K9 gives you more flexibility in projector location and orientation as it can run in any orientation. Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K9 accommodates almost any projector configuration.

Specificaties

Download specificatieblad

Algemene specificaties

Projectortype: Single chip DLP (0.67") laser phosphor projector

Resolutie: 3,840 x 2,400 (4K UHD) / 2,716 x 1,600 (WQXGA+ native)

Helderheid

9,000 center lumen*

8,500 ANSI lumen

9,600 ISO lumen

Uniformiteit van de helderheid: > 90%

Contrastverhouding: 1,200:1 sequential, 10,000:1 dynamic*

Lichtbron: Laser phosphor

Levensduur lichtbron: > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode

Beeldverhouding: 16:10

Kleurruimte: Rec. 709

Oriëntatie: 360° rotation, no restrictions

Verzegelde DLP™-kern: Yes

24/7 werking: Yes**

Kleurcorrectie: P7 RealColor™

CLO (constante lichtopbrengst): Yes

Keystone-correctie: Yes

Beeldverwerking: Embedded warp & blend engine

3D: Active stereoscopic 3D / Passive stereo compatible

Lenstype: GLD/FLDX/FLD+(lens adapter needed)

Optische lensverschuiving: Vertical up to 125%, depending on lens
Horizontal up to 50%, depending on lens
Motorized zoom and focus (with lens memory on GLD and FLDX lenses)
Motorized lens shift (with position memory on all lenses)

Ingangen: 12G-SDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI™ 2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12V out

Invoerresoluties

Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz

refresh rates:

24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)

Softwaretools: Projector Toolset

Controle: IR, RS232, RJ45, XLR wired

Netwerkverbinding: 10/100 Ethernet, RJ45

Stroomvereisten: 100-240V / 50-60Hz

Energieverbruik: 950 W nominal, 1100 W maximum

Stand-byvermogen: <0.5W

BTU per uur: 3,250 BTU/h nominal, 3,800 BTU/h maximum

Geluidsniveau (typisch bij 25°C/77°F): 35 dB(A)

Bedrijfstemperatuur: 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude)

Luchtvochtigheid bedrijf: 20-80% RH (non-condensed)

Opslagtemperatuur: -20 to 60 °C

Vochtigheid bij opslag: 20-90% RH (non-condensed)

Afmetingen (BxLxH): 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in

Gewicht: 25.5 kg / 56.2 lbs

Standaard accessoires: Power cord, wireless remote control

Certificeringen: CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO

Garantie: Limited 3 years on parts and labor(***)
Extendable up to 5 years.

*: * When measured with the GLD 1.43-2.12:1 lens in Wide Angle
** For optimal performance, switch off the projector regularly. For details please consult the manual.
*** Except on light source: 20,000 hours in normal mode, or 3 years, whichever comes first.
